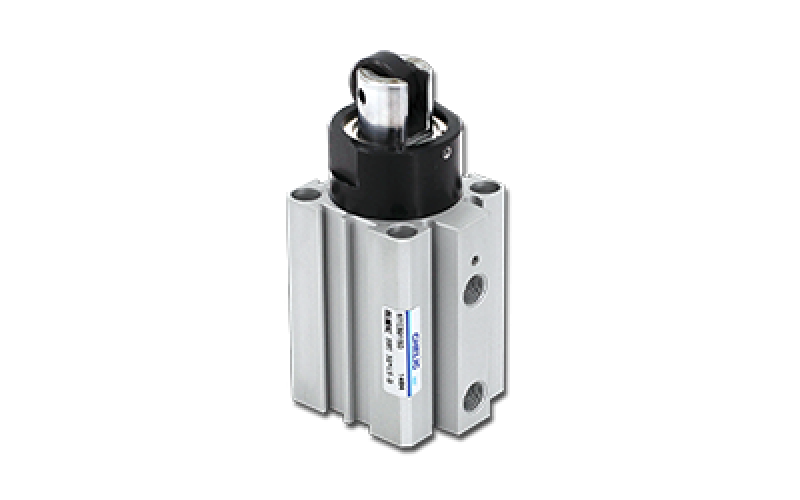

CHELICSTC-Stopper CylinderBore size(mm)Ø32/Ø40/Ø50ActionDouble acting/Single actingFluidAirPressure range(kgf/cm² (kPa))1.5~9.5 ( 150~950 )Ambient and fluid temperature(°C)0~60Operated speed(mm/sec)30
2024-03-27 admin

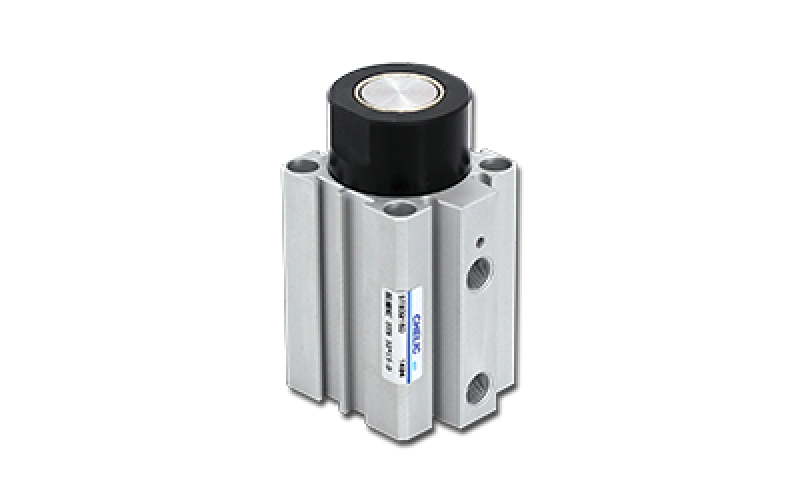

CHELICSTB-Stopper CylinderBore size(mm)Ø32/Ø40/Ø50ActionDouble acting/Single actingFluidAirPressure range(kgf/cm² (kPa))1.5~9.5 ( 150~950 )Ambient and fluid temperature(°C)0~60Operated speed(mm/sec)30
2024-03-27 admin

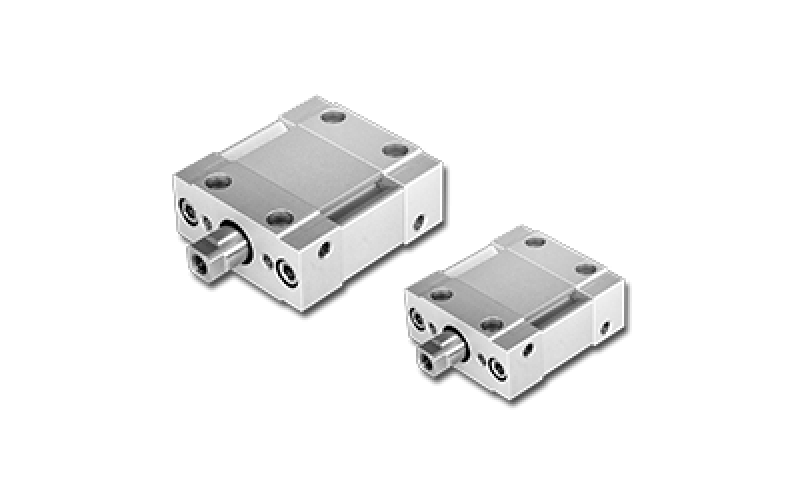

CHELICJM-Oval Piston Plate CylinderModel 20/25/32/40ActionDouble acting FluidAirPressure range(kgf/cm² (kPa))2~6 ( 200 ~ 600 )Max. service pressure(kgf/cm² (kPa))6.5 ( 650 )Ambient and fluid temperatu
2024-03-27 admin

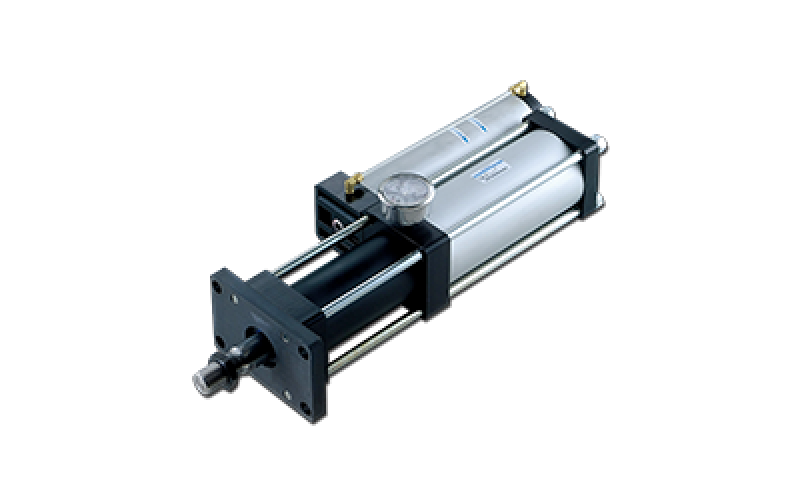

CHELICPCU-Boosting CylinderBooster output 1T/3T/5T/10T/20THydraulic cylinder bore size 1T:Ø503T:Ø635T:Ø8010T:Ø10020T:Ø125Booster bore size 1T:Ø633T:Ø805T:Ø10010T:Ø12520T:Ø160Working stroke 5, 10, 15,
2024-03-27 admin
CHELICPCB-Boosting CylinderBooster output1T/3T/5T/8T/10T/13T/15T/20THydraulic cylinder bore size1T/3T:Ø635T/8T:Ø8010T/13T:Ø10015T/20T:Ø125Booster bore size1T:Ø633T:Ø805T/8T:Ø10010T/13T:Ø12515T/20T:Ø16
2024-03-27 admin

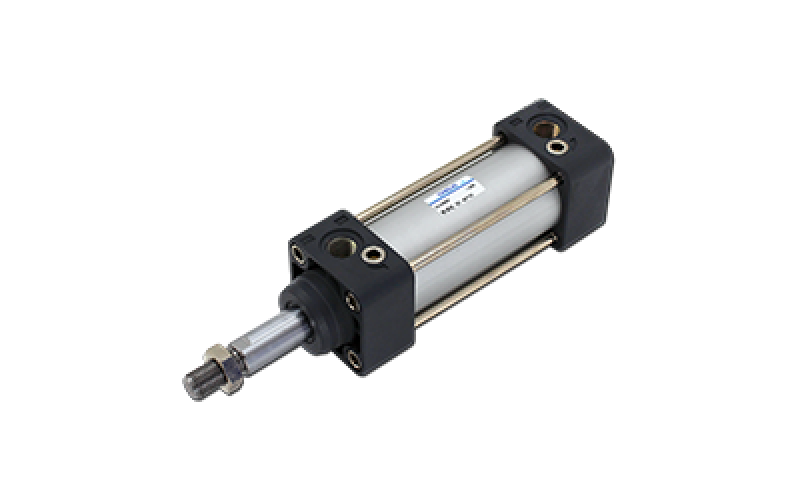

CHELICDU-Air Cylinder (Double piston packing)Bore size(mm)Ø40/Ø50/Ø63/Ø80/Ø100/Ø125/Ø160/Ø200ActionDouble actingFluidAirMounting typeFA、FB、CA、CB、LB、TCMax. service pressure(kgf/cm² (kPa))1.5 ~ 9 (150 ~
2024-03-27 admin
